Product Details:
Payment & Shipping Terms:
|
| Ultrasound Frequency: | 2MHz | Ultrasound Intensity: | <10mW/cm2 |
|---|---|---|---|
| Power Supply: | DC Ni-Mh Rechargeable Battery | Display: | 45mm×25mm LCD |
| FHR Measuring Range: | 50~240bpm | FHR Resolution: | 1bpm |
| FHR Accuracy: | ±1bpm | Power Consumption: | <1W |
| Highlight: | Pocket Fetal Doppler,Baby Fetal Doppler |
||

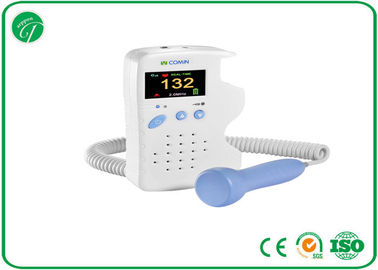

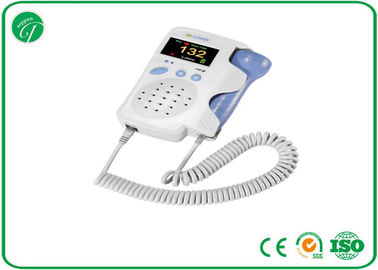

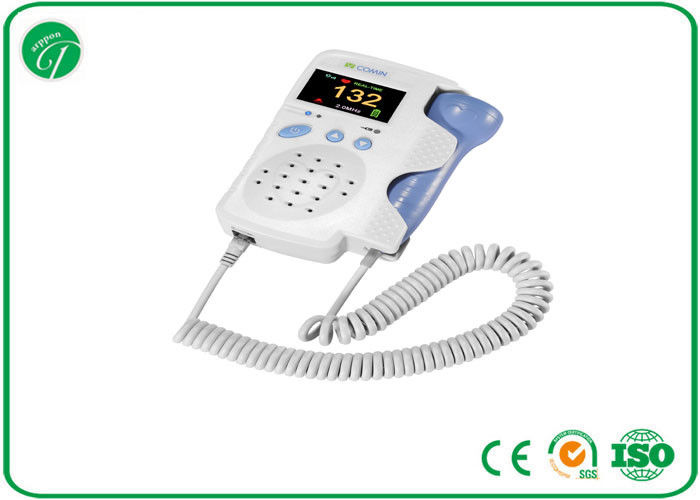

fetal doppler machine ultrasound pocket with High sensitivity doppler probe
Product Introduction
Name:Fetal Doppler
Model:FD-200G
1. Usage
●FD-200G ultrasonic fetal doppler meets the fetus
●daily check and routine examination at home,
●clinic,community and hospital.
2. Features
● Easily and convenient operate
● High-fidelity, crystal clear sound
● Earphone and speaker are feasible
● High sensitivity doppler probe
● Low ultrasound dosage
● Display with color LCD
3. Technical Specification
● Ultrasound frequency: 2MHz
● Ultrasound intensity: <10mW/cm2
● Power supply: Alkalinity battery
● Display: 45mm×25mm LCD
● FHR Measuring range: 50~240bpm
● FHR resolution: 1bpm
● FHR accuracy: ±1bpm
● Power consumption: <1W
● Dimension: 135mm ×95mm ×35mm
● Weight: 500g
4. Configuration
● Main body
● Alkalinity battery
● 2MHz probe
5. Option
● Earphone
● 3MHz probe
● Carry bag
6. FD-200 Series Difference Table
| Functions | FD-200A | FD-200D | FD-200C | FD-200B | FD-200G |
| Doppler type | Continuous | Continuous | Continuous | Continuous | Continuous |
| Display | No | B/W | Colour | B/W | Colour |
| Backlight | No | Yes | Yes | Yes | Yes |
| Build-in speaker | Yes | Yes | Yes | Yes | Yes |
| Various display modes | No | No | Yes | No | Yes |
| Volume adjust | Yes | Yes | Yes | Yes | Yes |
| Battery indicator | No | Yes | Yes | Yes | Yes |
| FHR display | No | Yes | Yes | Yes | Yes |
| FHR curve | No | No | Yes | No | Yes |
| Various work modes | No | Yes | Yes | Yes | Yes |
| Alkalinity battery | Yes | No | No | Yes | Yes |
| Ni-Mh battery | No | Yes | Yes | No | No |
| Charge in device | No | Yes | Yes | No | No |
